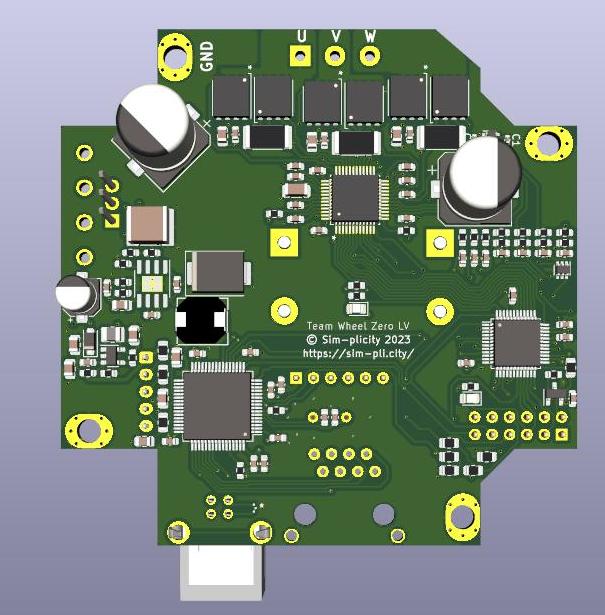

The Team Wheel Zero LV controller is an entry-level low-power FFB controller capable of driving a 3-phase servo motor at voltages between 15V & 30V and currents up to 7 amps rms.
Peripheral support is provided by a single Team Bus Connector supporting up to 3 Team add-ons.
A USB 2.0 Type B Connector provides external USB device connectivity.
Dual PSU support allows aggregation of identical power supplies to double the available input power.
¶ Supported Encoders
Incremental quadrature encoders with resolutions from 2,500 ppr to 16,384 ppr along with an index channel.
¶ Form Factors
The controller is available in the 80ST_90ST Integrated form factor.
¶ Firmware & Software
| Platform | Minimum Version |
|---|---|
| Windows | v21.10.01 |
| Linux | v22.03.01 |
